Dual-Head High-Efficiency Belt Filter Press

High-Efficiency Dewatering Solution for Mining & Industrial Wastewater

Engineered for continuous 24/7 operation, our Dual-Head Belt Filter Press processes up to 50 tons/hour with 50% less energy and 40% lower investment than traditional systems. Ideal for mine tailings dry stacking and industrial wastewater treatment.

[ Request a Customized Solution ]

Description

Product Overview

Dual-head belt filter press is a heavy-duty, continuous dewatering system engineered specifically for the toughest mining and industrial environments. Two independent filter belts run side by side, each with its own tensioning, tracking and wash system, so one head can keep dewatering while the other is being serviced — the line does not have to stop. This dual arrangement delivers significantly higher throughput than a single-belt model, while the extended gravity and pressure zones produce a measurably drier cake and a clearer filtrate, cutting the volume of material that has to be hauled, impounded or dried further downstream.

Because both stages work on the same continuous flow, the machine handles abrasive tailings, fine mineral slurries and high-solids industrial sludge without the batch interruptions of a plate-and-frame press, and with far less operator intervention. The frame and rollers are built for 24/7 duty in dusty, wet and corrosive plant conditions, with modular assemblies that keep maintenance quick and spare-part replacement predictable. It is the ultimate solution for mine tailings dry stacking, mineral processing and large-scale industrial wastewater treatment, where stable cake consistency, low operating cost per tonne and reliable round-the-clock availability decide whether the dewatering circuit holds up.

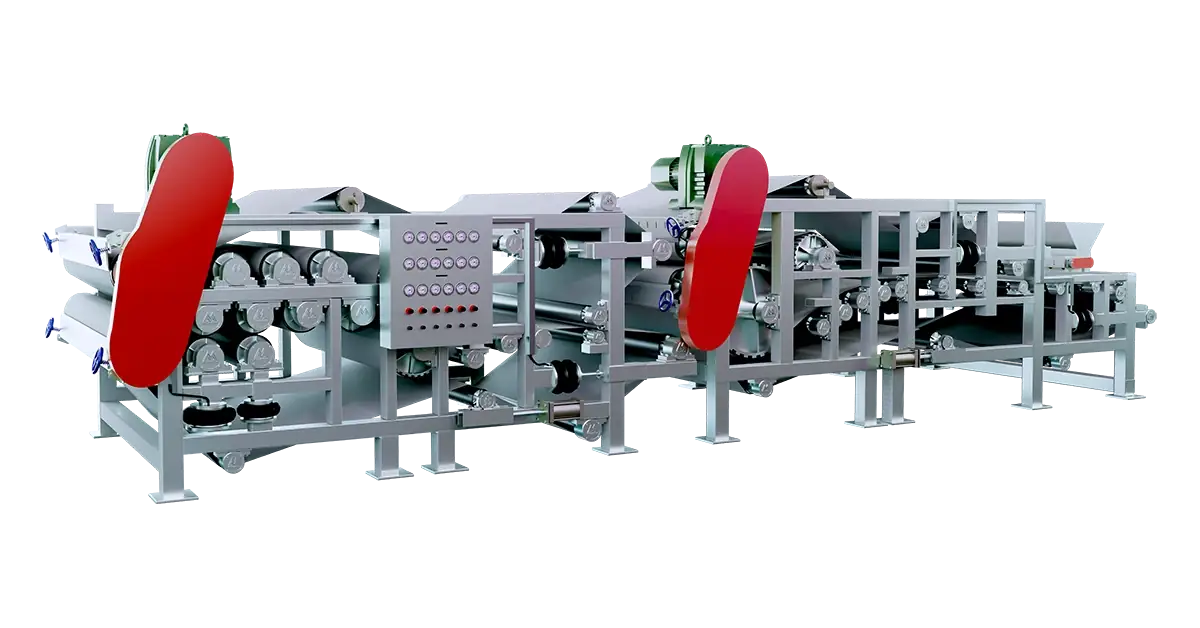

dual-head-belt-filter-press
dual-head-belt-filter-press

How It Works (Working Principle)

  1. Gravity Dewatering: The slurry is evenly distributed onto the upper filter belt, where gravity naturally separates the free water.

  2. Wedge Zone Pre-Press: The slurry is gently compressed between two belts to remove the majority of remaining water.

  3. Dual-Head High-Pressure Squeezing: The core innovation. The material passes through two sets of high-pressure roller systems (dual heads), applying increasing mechanical pressure to extract bound water.

  4. Cake Discharge & Belt Washing: The dried sludge cake is automatically scraped off, while continuous high-pressure water cleaning ensures the filter cloth remains porous for the next cycle.

Core Technical Advantages

  • Unmatched Processing Capacity: Our dual-head-belt-filter-press is designed to handle up to 50 tons of dry solids per hour, perfectly matching the output of medium to large-scale mining operations.

  • 50% Energy Reduction: The optimized dual-roller drive system of the dual-head-belt-filter-press consumes only 50% of the power required by traditional plate and frame filter presses of the same capacity, drastically cutting your electricity bills.

  • Fast ROI (40% Lower Investment): Compared to equivalent plate and frame systems, this dual-head-belt-filter-press requires only about 40% of the initial capital investment, ensuring a faster return on investment.

  • Fully Automated Operation: Equipped with PLC control and automatic belt tracking, the dual-head-belt-filter-press allows one operator to manage multiple machines simultaneously, reducing labor costs by over 50%.

  • Durable Construction: Made with heavy-duty carbon steel frames and wear-resistant, high-pressure filter cloths, our dual-head-belt-filter-press ensures 24/7 continuous operation with minimal downtime.

Technical Specifications

ModelBelt WidthCapacity (t/h)Motor Power (kW)Dimensions (mm)
4DYQ3000S11P23000mm45 – 705317500 x 3780 x 2700
4DYQ3500S11P23500mm80 – 1005717500 x 4280 x 2700

Wide Applications

  • Mining & Minerals: Gold, copper, iron ore, coal, lithium, and other mineral processing tailings dewatering using our dual-head-belt-filter-press.

  • Tailings Dry Stacking: Achieving low moisture content (<35%) for safe and environmentally friendly dry stacking. Our dual-head-belt-filter-press ensures reliable solid-liquid separation in these demanding conditions.

  • Sand & Aggregate Washing: Rapid recovery of fine sand and clean water recycling.

  • Chemical & Industrial Wastewater: Sludge treatment in chemical plants, power plants, and steel mills.

Uncompromising Quality for Reliable Performance

  • Premium Joint-Venture Components: Spare parts cost 40% higher than the market average, guaranteeing exceptional durability.

  • Heavy-Duty Anti-Corrosion Frame: Built with internationally standardized thickened steel plates and 5 layers of paint. Customer tests confirm it remains rust-free for 5 years.

  • Long-Lasting Air Pipes: Engineered to resist aging for over 5 years.

  • Top-Tier Core Parts: Equipped with motors from publicly listed companies, nitrile rubber (NBR) coated rollers, and filter belts from joint-venture suppliers.

  • Our Commitment: Meibang Group is dedicated to one single goal — crafting a highly reliable and efficient belt filter press for your operations.

dual-head-belt-filter-press
rubber-lagged roller

drive roller

filter belt

Why Choose Us?

Backed by decades of experience in solid–liquid separation, we deliver more than a machine — we deliver tailored dual-head-belt-filter-press solutions. On-site material testing confirms your feed matches the equipment, so you get optimal dewatering performance and fewer surprises. Our engineers provide on-site installation guidance and lifetime technical support.
